BOM
- 2 gauge wire (10 ft)
- 10 gauge wire (10 ft)
- 6.3mm spade connectors
- FIA Kill Switch
- Butt Splice Connectors
Tools
- Wire Crimpers
- 2 Gauge Large Wire Crimpers
- Electrical Tape
Helpful Links
These two links helped me figure out how to wire things
- https://robrobinette.com/S2000CutoffSwitch.htm#:~:text=Pegasus%204%20Gauge%20Battery%20Cable&text=Use%203%2F8%22%20size%20holes%20for%20the%20cutoff%20switch%20terminals
- https://forums.24hoursoflemons.com/viewtopic.php?pid=337653#p337653
- https://www.youtube.com/watch?v=Q3Oshy9FOaA
Good things we did

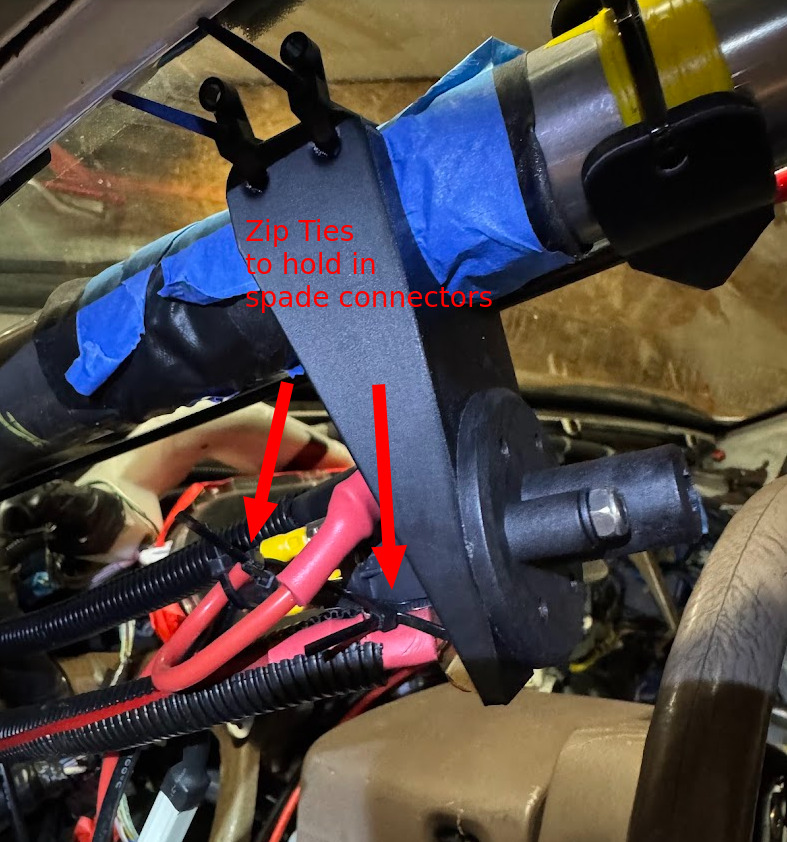

- We put our kill switch above and to the left of the steering wheel along the roll cage - we rotated the kill switch further out so that it wouldn’t intefere with gloved hands moving along the steering wheel.
Fumbles
- I wired it wrong the Z switch at first — assumed the red wire going into the ignition was +12V, but in reality the white wire was +12V. Before performing a kill switch test I sanity checked all the voltages I was expecting to see, and I got 0V on a line that was supposed to be hot. So I knew something was wired wrong
